Description

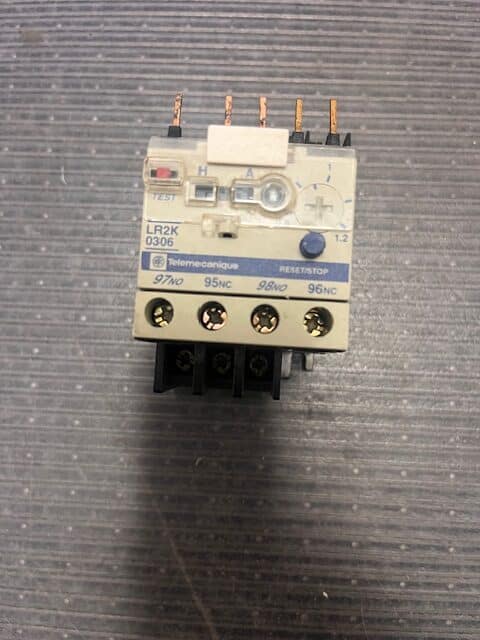

Schneider / Telemecanique LR2K0306 TeSys K Thermal Overload Relay | 0.8–1.2A | New Old Stock
Superior Motor Protection for Your Control System
Protect your 3-phase motors effectively because the Telemecanique LR2K0306 offers precise defense against overloads and phase failures. This specific TeSys K model provides a reliable adjustment range of 0.8A to 1.2A. Consequently, it serves as the perfect safety component for low-power industrial applications.
Although this unit comes without the original manufacturer’s packaging, we guarantee it is New Old Stock (NOS). Therefore, you receive an unused, high-quality device at a significantly lower price point. Furthermore, our team has inspected the unit to ensure it meets original factory standards.
Why Choose the LR2K0306?
First, this relay features a compact 45mm width, so it saves valuable space inside your control panel. Next, you can plug the unit directly into the underside of TeSys K contactors (LC1K models) without extra wiring. Additionally, the device includes a blue pushbutton that lets you switch easily between Manual and Automatic reset modes.
Key Features & Benefits:
- Active Monitoring: The bimetallic system actively detects load unbalance and phase loss.
- Simple Control: You can use the red stop/test button to simulate a trip at any time.
- Secure Adjustments: A transparent, lockable cover protects the thermal dial from accidental changes.
- Dual Signalling: The 1 NO + 1 NC auxiliary contacts provide immediate fault status to your controller.
- Versatile Mounting: While it fits LC1K contactors directly, you can also mount it to a DIN rail using an LA7K0064 terminal block.
Technical Specifications:
- Brand: Schneider / Telemecanique
- Model: LR2K0306
- Current Range: 0.8 – 1.2 Amperes
- Tripping Class: Class 10A
- Condition: New Old Stock (No original box)
Technical Specifications:
- Brand: Telemecanique / Schneider Electric
- Model: LR2K0306
- Current Range: 0.8 – 1.2 Amperes
- Tripping Class: Class 10A
- Mounting: Direct on contactor or 35mm DIN rail (with LA7K0064 block)
- Condition: New Old Stock (No original box)
